Automatic CPAP/ BPAP devices

Prisma 20A - the Auto-CPAP from Löwenstein Medical's premium product line offers everything you need for successful sleep apnea therapy. Thanks to Forced Oscillation Technology (FOT), the device reliably distinguishes between obstructive and central apnea and automatically adjusts the pressure to meet the patient's needs. The prisma20A is highly adaptable, ensuring a safe, effective and whisper-quiet APAP therapy made in Germany.

• The most important features at a glance:

The device reliably supports you during the night, ensuring a smooth therapy process. Among its features, the prisma20A in CPAP and APAP-mode stands out for its functional user interface with a large touch display and intelligent pressure regulation throughout the breathing cycle. The device includes a softPAP comfort feature, where the pressure is reduced at the beginning of expiration during therapy in CPAP and APAP-mode and raised again to therapy pressure at the beginning of inspiration, maximizing expiration comfort.

• Simple and intuitive to use:

The smart menu navigation on the large touch screen ensures intuitive and quick use. Patients and healthcare staff alike benefit from the intuitive and user-friendly concept. Effortless and consistent across the entire prismaLINE device family.

• AutoCPAP mode:

Patients vary in sensitivity to pressure adjustments. For effective therapy and comfortable breathing, the APAP mode offers two pressure adjustment options: Standard and Dynamic. The therapy pressure automatically adjusts to the patient's needs during the night. This makes the device suitable for treating patients with obstructive sleep apnea and fluctuating pressure requirements. An additional mechanism prevents unnecessary pressure increases at closed central events.

• With deep sleep indicator:

The integrated deep sleep indicator, prisma RECOVER makes it possible to assess the quality of sleep. It continuously analyzes the respiratory pattern during therapy and detects phases of stable breathing that indicate deep sleep, a particularly restorative phase of sleep.

Connective APAP therapy: Flexible. Secure. Reliable.

With prisma SMART in the plus, we offer modern and reliable APAP therapy trough integrated connectivity, precise event detection and a high level of patient comfort. The plus represents integrated Bluetooth® for data transmission to the prisma APP, enabling modern patient self-management.

• The most important features at a glance.

Prisma SMART is available in the plus version, which offering two dynamic options for pressure adjustment in APAP mode. The device is whisper-quiet, providing greater comfort, well-being and restful sleep for our patients and their partners. The well-known advantages of Löwenstein Medical's proven prisma devices are combined with modern connectivity. This allows you to always keep an eye on your therapy.

• Smart networking.

The prisma SMART in plus variant enables intelligent networking between sleep diagnostics and sleep therapy. It is directly connected to our Samoa polygraph system - wirelessly via Bluetooth®.

• A variety of comfort features.

Patient comfort is enhanced trough various functions and modes. For example, patients benefit from the softPAP pressure relief feature. Here, the pressure is lowered at the start of expiration and raised back to the therapy pressure at the start of inspiration, maximizing exhalation comfort and effectively avoiding events. In addition, the softSTART mode, characterized by a slow pressure increase over a preset time up to the therapy pressure, supports comfortable falling asleep. This facilitates acclimatization to therapy pressure during the sleep onset phase.

• Reliable differentiation.

For a seamless therapy, the device reliably differentiates between obstructive and central apneas. This is made possible by the integrated Forced Oscillation Technique (FOT). FOT detects periodic breathing, RERA, snoring, hypopneas, apneas and flow limitations.

• Product features:

• prismaAQUA

prismaAQUA is the powerful respiratory air humidifier for the world of sleep apnea therapy devices. It humidifies and warms the breathing air to prevent the patient's mucous membranes from drying out.

• Pressure reaction fits patient’s needs

Patients react with varying sensitivity to pressure adjustments. For effective therapy and breathing comfort, two options for pressure adjustments are available in APAP mode. In addition, a pressure increases at closed central events is avoided.

• Modern connectivity

Compatible and future-proof. Various interfaces such as SD, PSG, LAN and external modem offer various options for data transfer. Our software solutions (e.g. prismaTS, prisma APP and prisma CLOUD) are available for simple, flexible and secure therapy support.

The Prisma 25S device, developed by specialists from the German company Loewenstein Medical, features automatic therapeutic pressure adjustment and three-level ventilation, offering a number of undeniable advantages, including:

• Minimal noise level, not exceeding 26.5 dB at 10 cm H₂O;

• Effective combination of BiPAP therapy with full control of a third-level air pressure at the final stage of patient exhalation. The device operates in automatic CPAP mode across all three ventilation levels simultaneously;

• Therapeutic pressure range: 4–25 cm H₂O;

• Convenient automatic functions: The device turns on after the first breath and shuts off 5 seconds after mask removal;

• Built-in memory stores all treatment data, including device settings, allowing doctors to objectively analyze therapy results and effectiveness;

• A 30-second test mode lets patients check mask fit and air leaks at therapeutic pressure before starting therapy;

• Special display indicators show mask fit quality and leak levels during therapy;

• Power options: AC power (100–240V), DC adapter (12–24V)

• Heated humidifier with a 400 ml water tank, which automatically shuts off when empty;

• Treatment data can be exported via the included memory card;

• Compact dimensions (17 × 13.5 × 18 cm) and lightweight design (1.4 kg).

Package Includes:

• Prisma 25S Auto TRIPAP device

• PrismaAQUA heated humidifier

• Carrying case

• Memory card
• Corrugated hose
• Filte

Reminder:

A BiPAP (also known as BPAP) system, or Bilevel Positive Airway Pressure, is a type of non-invasive ventilation device used to assist breathing.

BiPAP is commonly used to treat conditions like sleep apnea, COPD, obesity hypoventilation syndrome, and other respiratory issues.

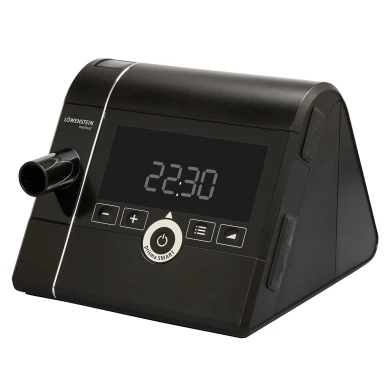

The Prisma SMART is an automatic CPAP/APAP device designed for the effective treatment of sleep apnea. This intelligent device offers personalized therapy based on your breathing patterns, ensuring comfortable and uninterrupted sleep.

Key Benefits:

Intelligent Pressure Adjustment: The device features Standard and Dynamic modes that automatically adjust pressure to deliver personalized and optimal treatment.

softPAP Technology: This function reduces exhalation resistance, ensuring natural and comfortable breathing during sleep.

softSTART Function: Pressure gradually increases at the beginning of sleep, allowing users to adapt smoothly to therapy.

Prisma RECOVER: This feature analyzes and monitors deep sleep phases, ensuring the full effectiveness of treatment.

Pressure up to 20 cm H₂O: The device can deliver up to 20 cm H₂O of pressure, making it suitable for all cases of sleep apnea treatment.

Comfort Features:

Heated Humidifier (prismaAQUA System): Prevents airway dryness, making therapy more comfortable.

Ultra-Quiet Operation (<26 dB): The device operates almost silently, ensuring it does not disturb your sleep or that of others.

User-Friendly Interface: A simple LED screen and easy controls ensure hassle-free operation.

Remote Monitoring & Control:

Prisma CLOUD: Cloud data storage allows access to your treatment data from anywhere.

Prisma APP: The app lets you monitor device performance and sleep data directly from your smartphone.

Prisma TS: Professional analysis tools for doctors, ensuring precise and effective treatment oversight.

Package Contents:

1. Automatic CPAP device Prisma Smart
2. Air humidifier PrismaAQUA with water heating function
3. Breathing tube
4. Power supply unit
5. Power cord
6. Annual set of air filters (black – 2 pcs.)
7. Transport bag
8. SD memory card
9. Instructions for use
